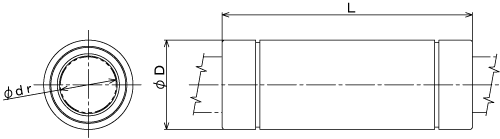

LM-L Linear Bushing
Datasheet
| Model No. | Main dimensions | |||||
| Inscribed bore diameter | Outer Diameter | Length | ||||
| dr | Tolerance | D | Tolerance | L | Tolerance | |
| mm | mm | mm | mm | mm | mm | |
| LM 3L | 3 | 0 | 7 | 0 | 19 | 0 |
| –0.010 | –0.013 | –0.3 | ||||
| LM 4L | 4 | 0 | 8 | 0 | 23 | 0 |
| –0.010 | –0.013 | –0.3 | ||||
| LM 5L | 5 | 0 | 10 | 0 | 29 | 0 |
| –0.010 | –0.013 | –0.3 | ||||
| LM 6L | 6 | 0 | 12 | 0 | 35 | 0 |
| –0.010 | –0.013 | –0.3 | ||||
| LM 8L | 8 | 0 | 15 | 0 | 45 | 0 |
| –0.010 | –0.013 | –0.3 | ||||
| LM 10L | 10 | 0 | 19 | 0 | 55 | 0 |
| –0.010 | –0.016 | –0.3 | ||||
| LM 12L | 12 | 0 | 21 | 0 | 57 | 0 |
| –0.010 | –0.016 | –0.3 | ||||
| LM 13L | 13 | 0 | 23 | 0 | 61 | 0 |
| –0.010 | –0.016 | –0.3 | ||||
| LM 16L | 16 | 0 | 28 | 0 | 70 | 0 |
| –0.010 | –0.016 | –0.3 | ||||
| LM 20L | 20 | 0 | 32 | 0 | 80 | 0 |
| –0.012 | –0.019 | –0.3 | ||||
| LM 25L | 25 | 0 | 40 | 0 | 112 | 0 |
| –0.012 | –0.019 | –0.4 | ||||
| LM 30L | 30 | 0 | 45 | 0 | 123 | 0 |
| –0.012 | –0.019 | –0.4 | ||||
| LM 35L | 35 | 0 | 52 | 0 | 135 | 0 |
| –0.015 | –0.022 | –0.4 | ||||
| LM 40L | 40 | 0 | 60 | 0 | 154 | 0 |
| –0.015 | –0.022 | –0.4 | ||||
| LM 50L | 50 | 0 | 80 | 0 | 192 | 0 |
| –0.015 | –0.022 | –0.4 | ||||
| LM 60L | 60 | 0 -0.020 | 90 | 0 -0.025 | 211 | 0 -0.4 |
